Wilson Signal Booster X Marine Kit

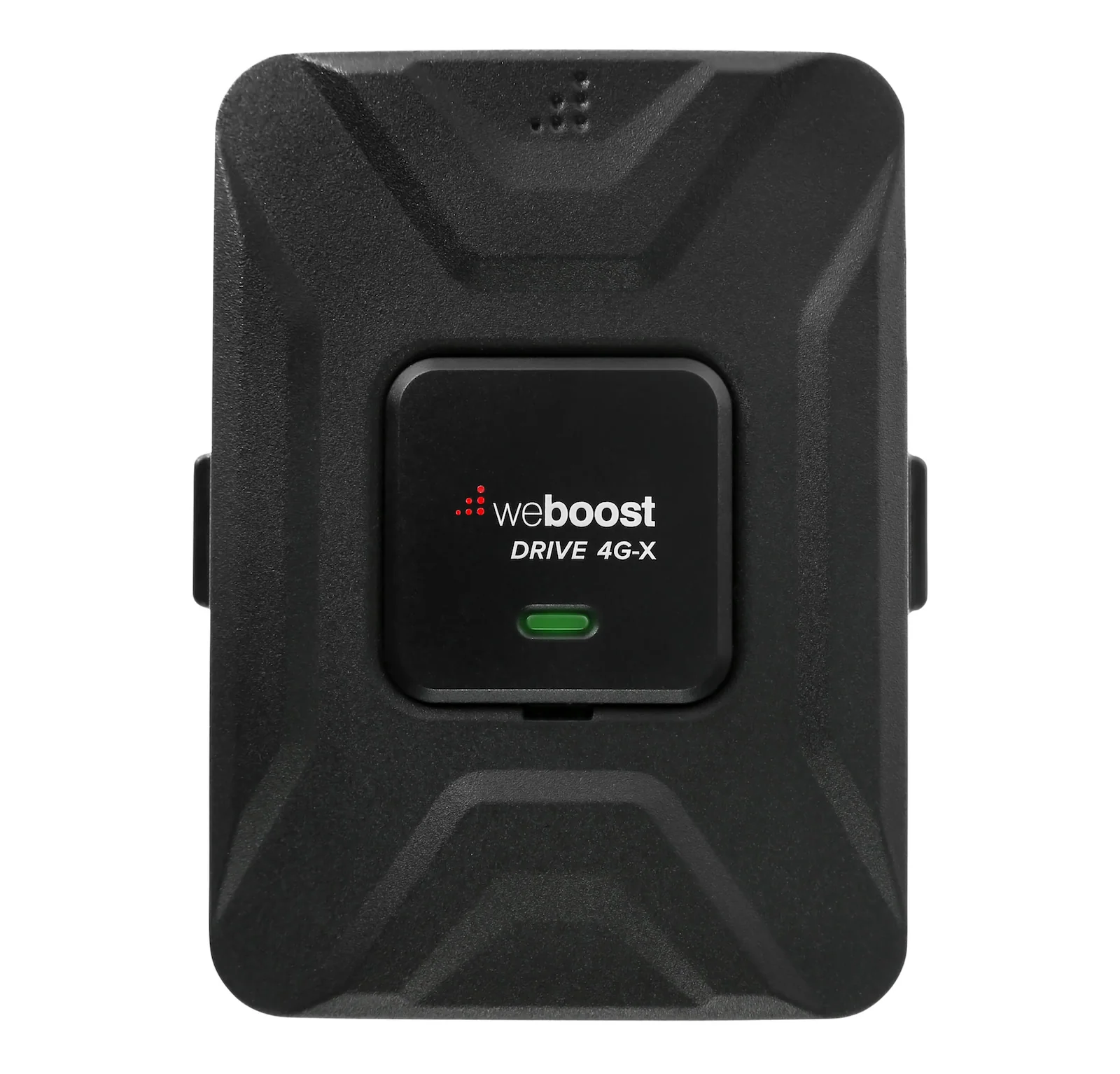

The Wilson Signal Booster X Marine Kit is a great option for boosting cell signal in your boat or marine craft. The Marine Kit features the weBoost Drive X 5-band, 50 dB amplifier, which has the FCC maximum 50 dB of gain and one of the most powerful uplinks back to the cell tower, an outside marine antenna, and a panel inside antenna to maximize the internal coverage area.

This marine kit boosts the 2G, 3G, 4G LTE and 5G networks from the major cell carriers, giving you fewer dropped calls, increased reception and the fastest download speeds possible. Unlike some other mobile signal boosters, the Extreme Marine kit communicates with your phone wirelessly, so it does not require a direct connection or for your phone to sit in a cradle. Also, because it broadcasts boosted signal to the local area, multiple phones and data devices will receive boosted signal at the same time.

The Wilson Signal Booster X Marine Kit's inside coverage area will depend on your existing outside signal strength. In areas where you have a moderate existing outside signal, the Mobile 4G will provide a boosted signal up to 5 ft from the inside antenna. As the outside signal gets weaker, you may have to keep your phone within about 18 inches from the inside antenna in order to take advantage of the boosted signal. To talk on the phone while moving around the boat, just keep your phone near the inside antenna and use a bluetooth headset for mobility. Hotspots can also be left near the inside antenna giving you the fastest internet speeds.

Supported Carriers

The Wilson Signal Booster X Marine Kit supports the Voice, 3G, 4G LTE and 5G networks from all major carriers in North America. It does not support any WiMAX or iDEN networks.

• AT&T 2G, 3G, 4G HSPA+, 4G LTE & 5G
• Verizon 2G, 3G, 4G LTE & 5G
• Sprint 2G, 3G & 4G LTE
• T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
• US Cellular 2G, 3G & 4G LTE
• All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies

Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

Installation Overview

Installing the Wilson Signal Booster X Marine Kit is very easy and can usually be done in just a few minutes.

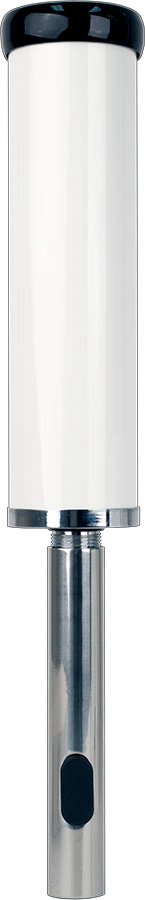

1. Mount the Marine Antenna using the included marine antenna mount, as high up as possible on the boat or marine vehicle.

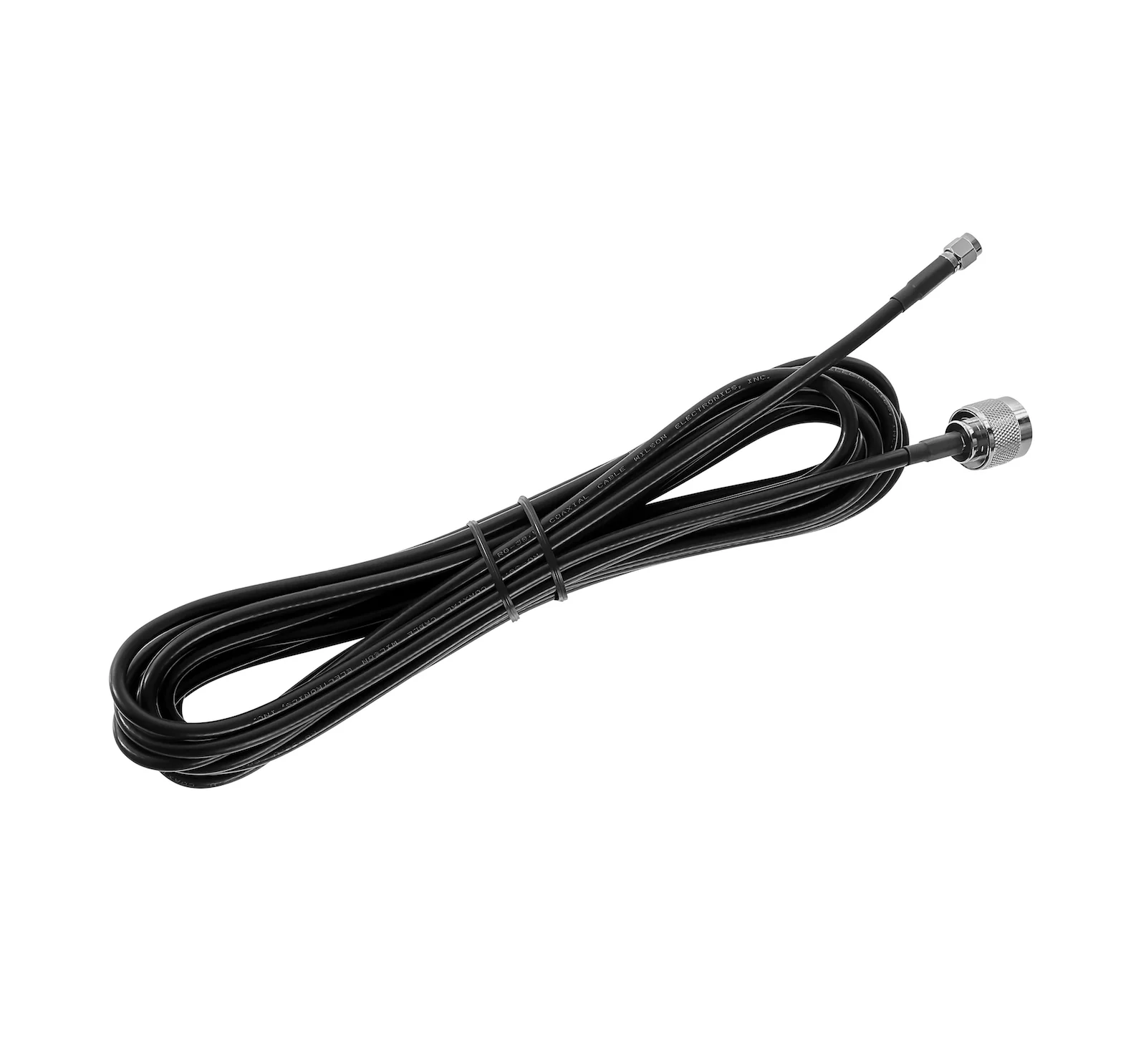

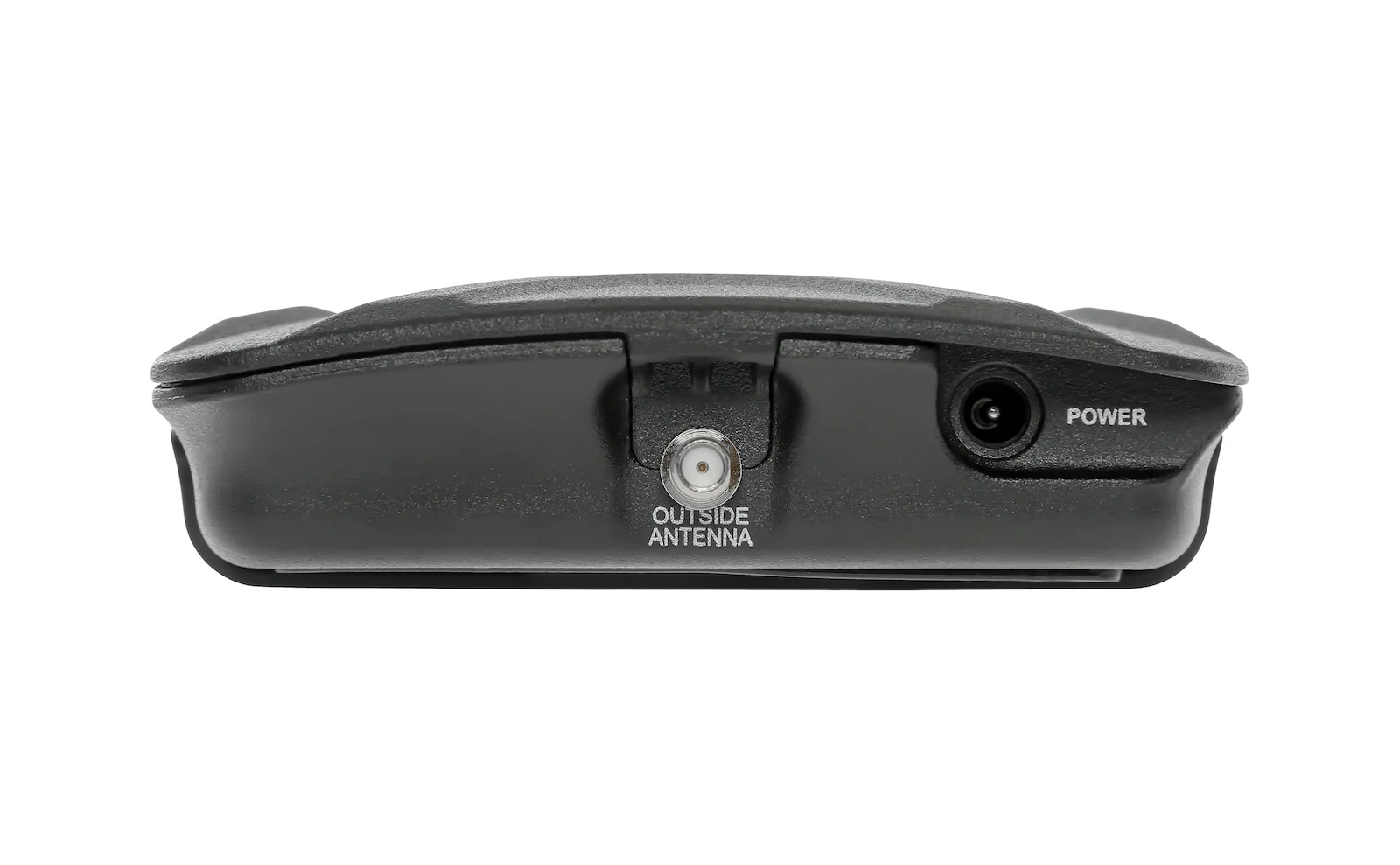

2. Run the attached cable into the boat and connect the cable to the amplifier's Outside Antenna port.

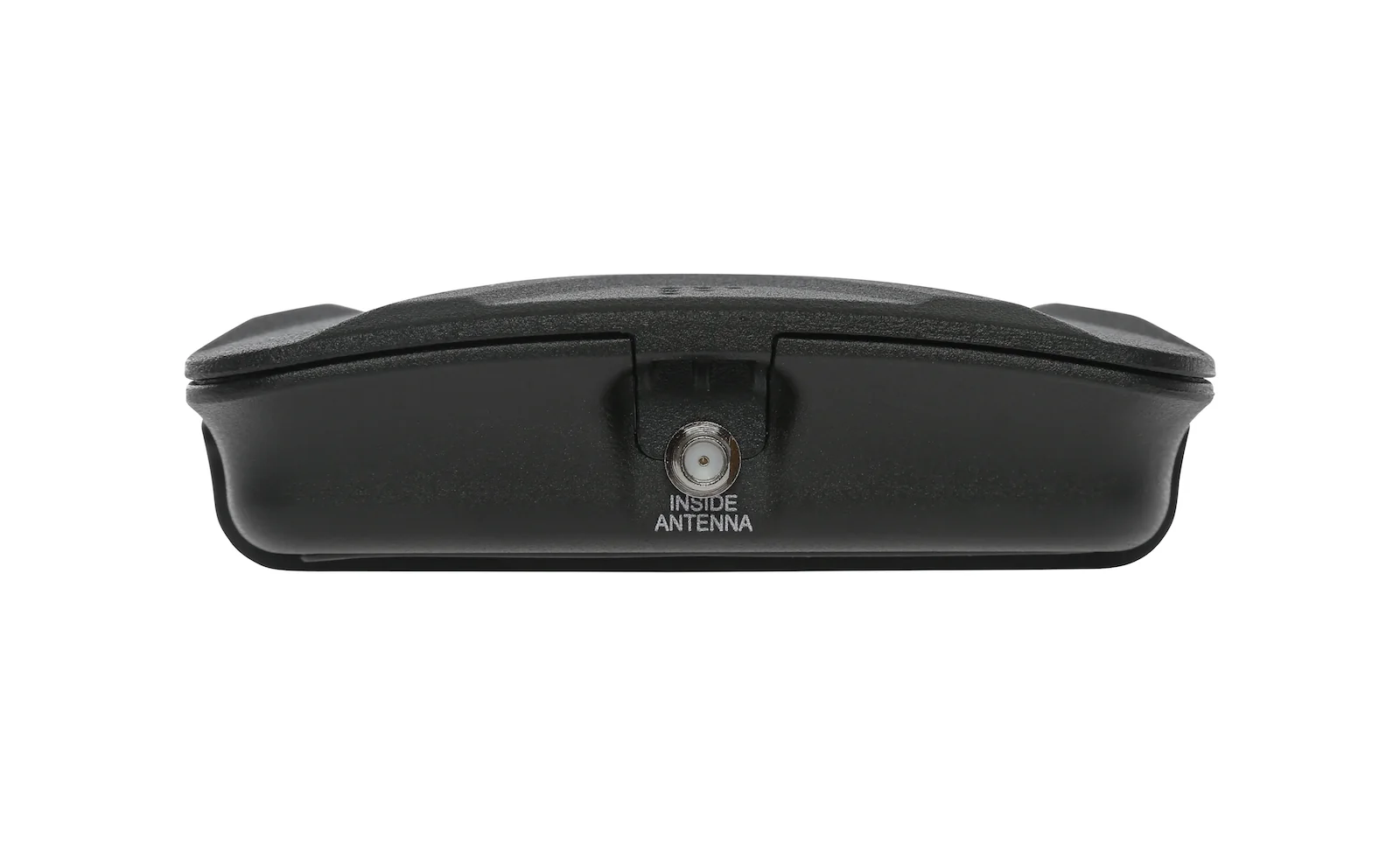

3. To the Inside Antenna port, connect the inside antenna cable.

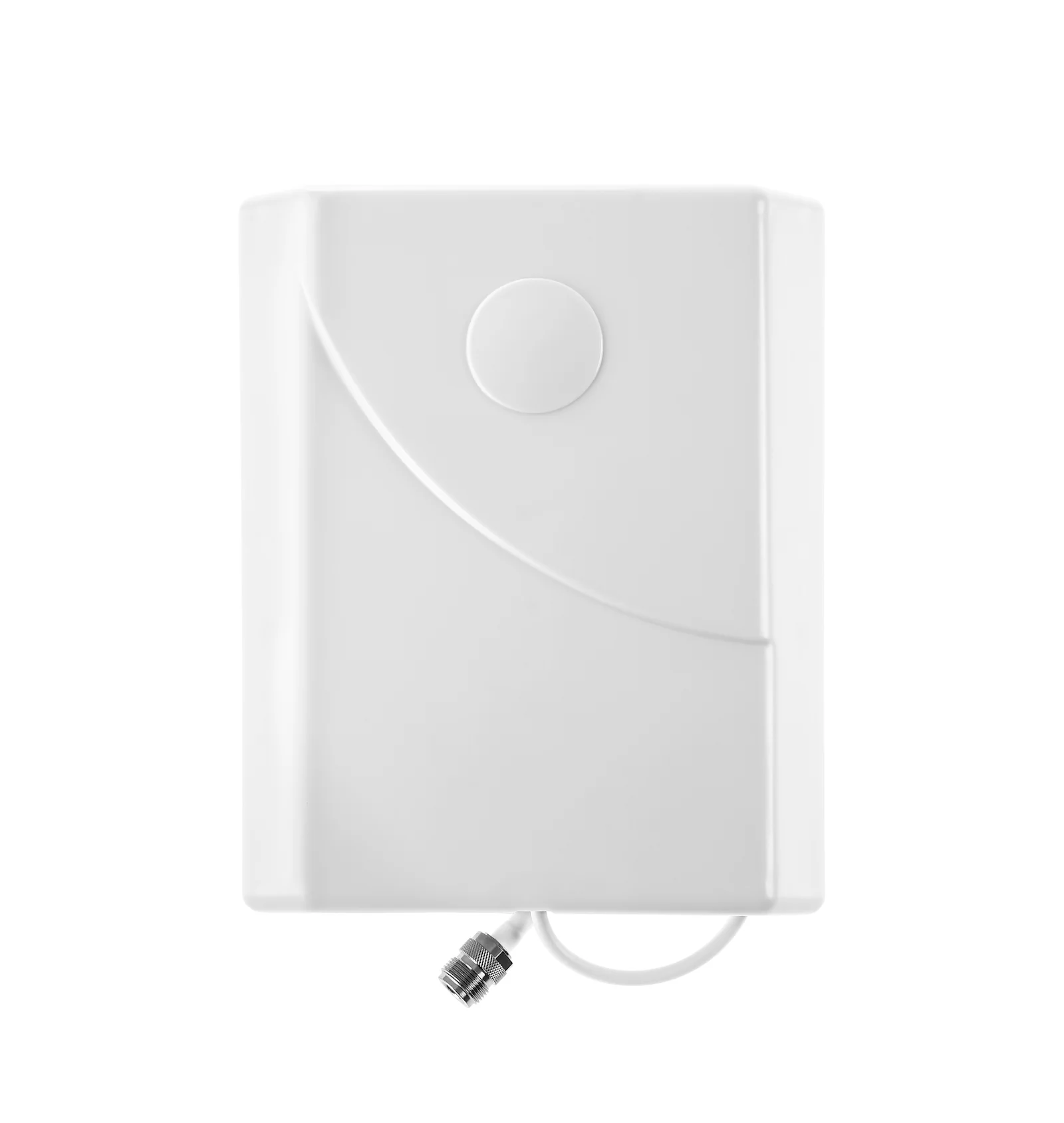

4. Run to the inside panel antenna, which you'll mount either on the ceiling or the wall in the location where you'll be using your mobile devices the most.

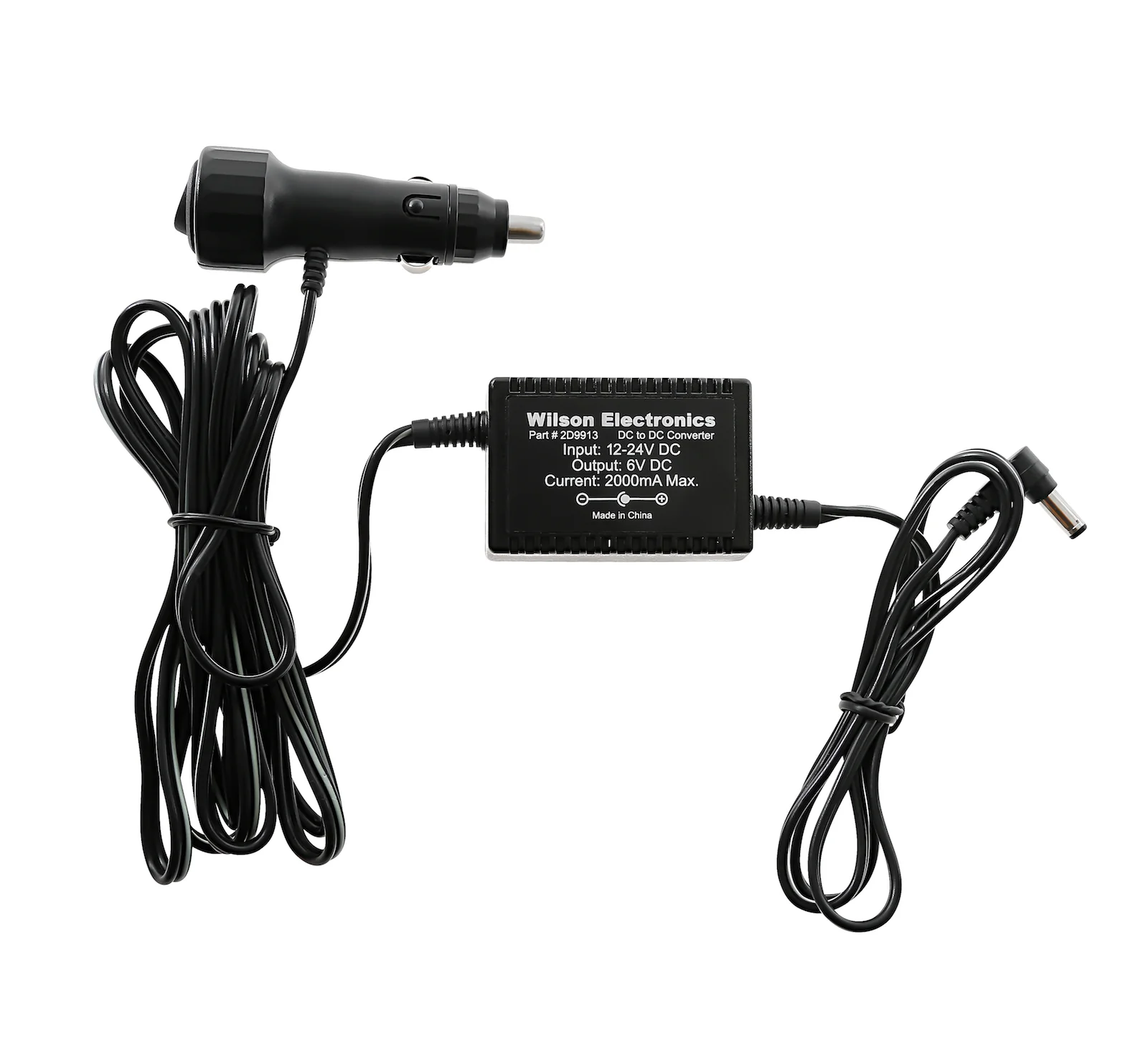

5. Power on the amplifier and you should immediately start receiving boosted signal.
