weBoost 475021 Drive X Vehicle Signal Booster

The weBoost 475021 Drive X Mobile Signal Booster Kit has the most powerful downlink allowed by the FCC and a strong uplink back to the nearby cell towers, so you get a usable cell phone reception in locations where other mobile boosters have stopped working. The Drive X is a great and affordable alternative to the weBoost Drive Reach 470154.

The Drive X boosts the 2G, 3G, 4G LTE, and 5G networks from the major carriers in the United States and Canada, for fewer dropped calls, less delayed text messages and the fastest download speeds possible. The Drive X broadcasts boosted signal to your phone wirelessly and does not require your phone to sit in a cradle, so it can support multiple phones and data devices simultaneously.

The weBoost 475021 Drive X's inside coverage area will depend on your existing outside signal strength. In areas where you have a moderate existing outside signal, the Drive X will fill a normal vehicle with boosted coverage. As the outside signal gets weaker, the inside coverage area will shrink, until you may have to keep your phone within about 18 inches from the inside antenna in order to take advantage of the boosted signal.

Supported Carriers

The weBoost 475021 Drive X Kit supports the voice, 3G, 4G LTE and 5G networks from all major carriers in the United States and Canada. For other locations, please consult the frequencies listed below to see if this product will work for you.

Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:

• AT&T 2G, 3G, 4G HSPA+, 4G LTE & 5G
• Verizon 2G, 3G, 4G LTE & 5G
• Sprint 2G, 3G & 4G LTE
• T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
• US Cellular 2G, 3G & 4G LTE
• All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies

Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

In the Box

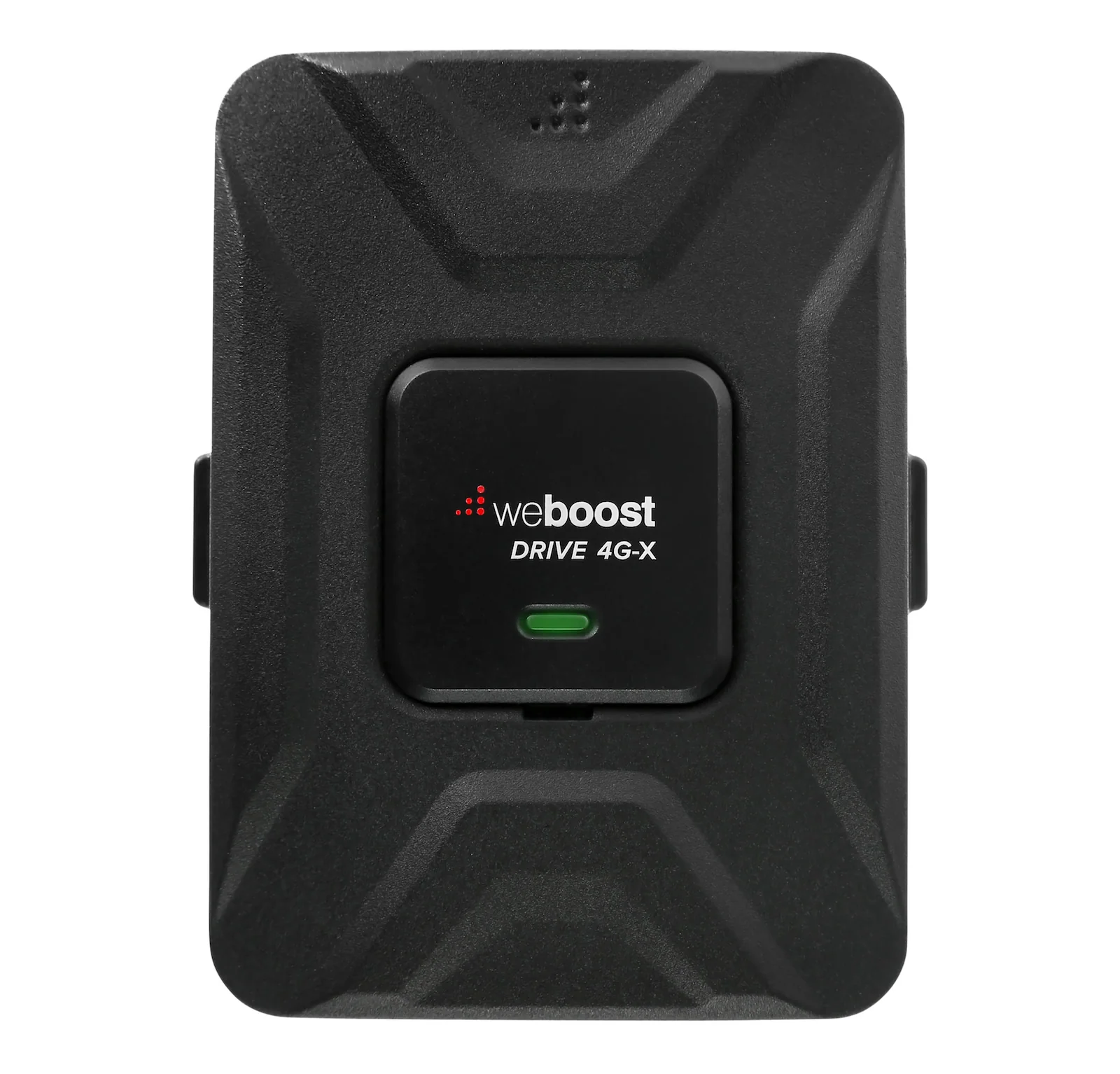

• weBoost Drive X Mobile Amplifier

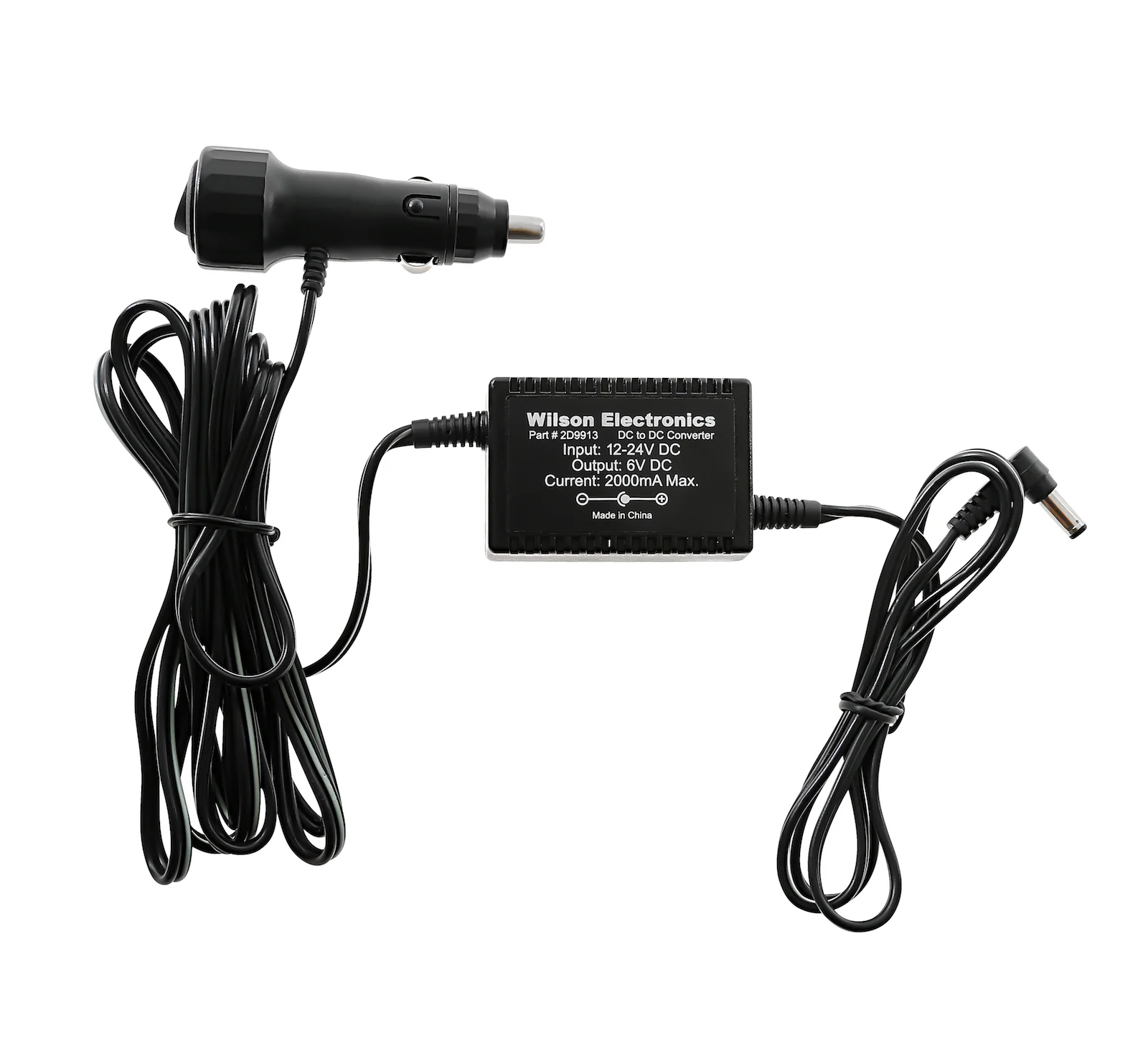

• DC Power Adapter

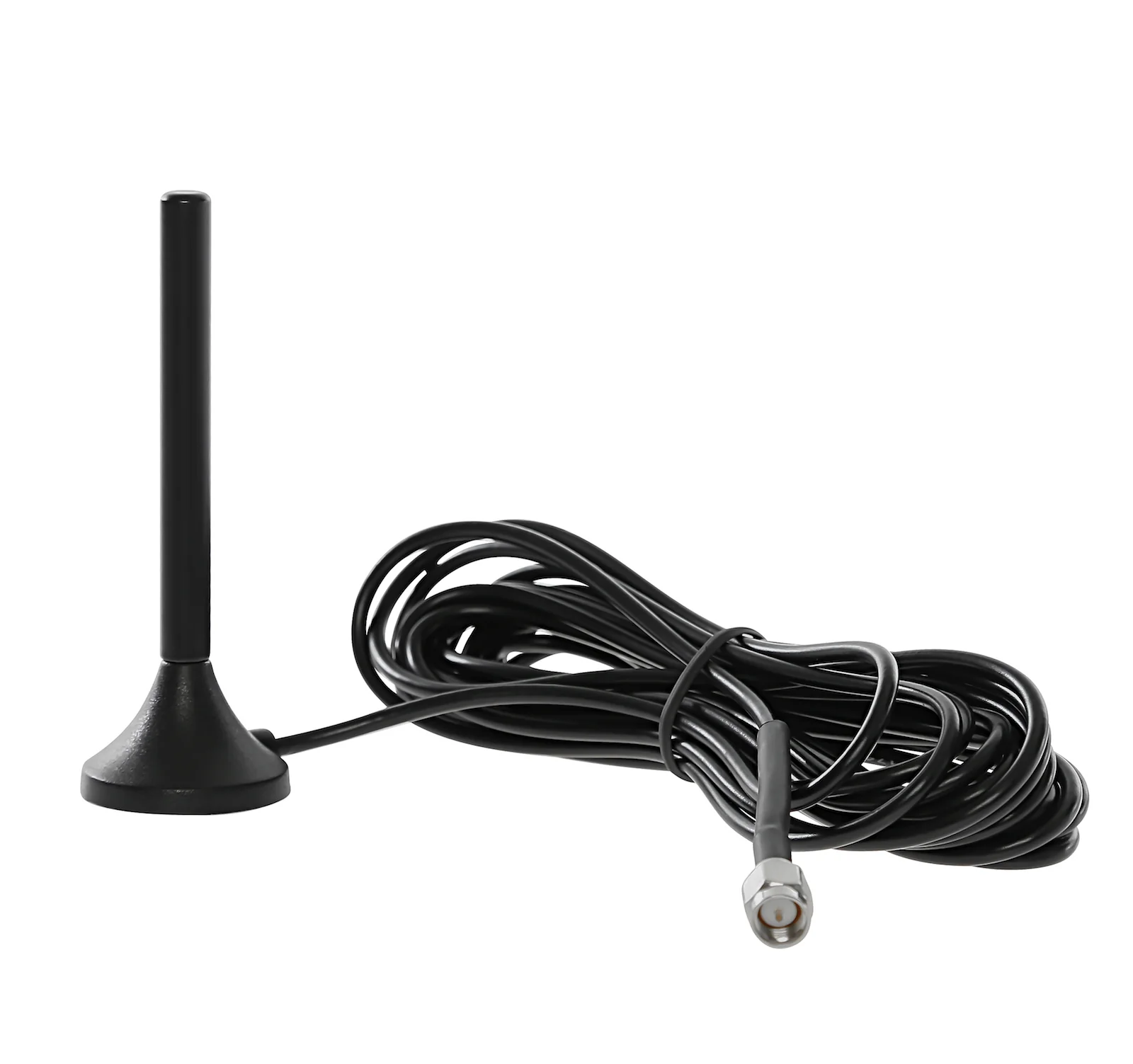

• Outside magnetic mount antenna with 10' Coax Cable

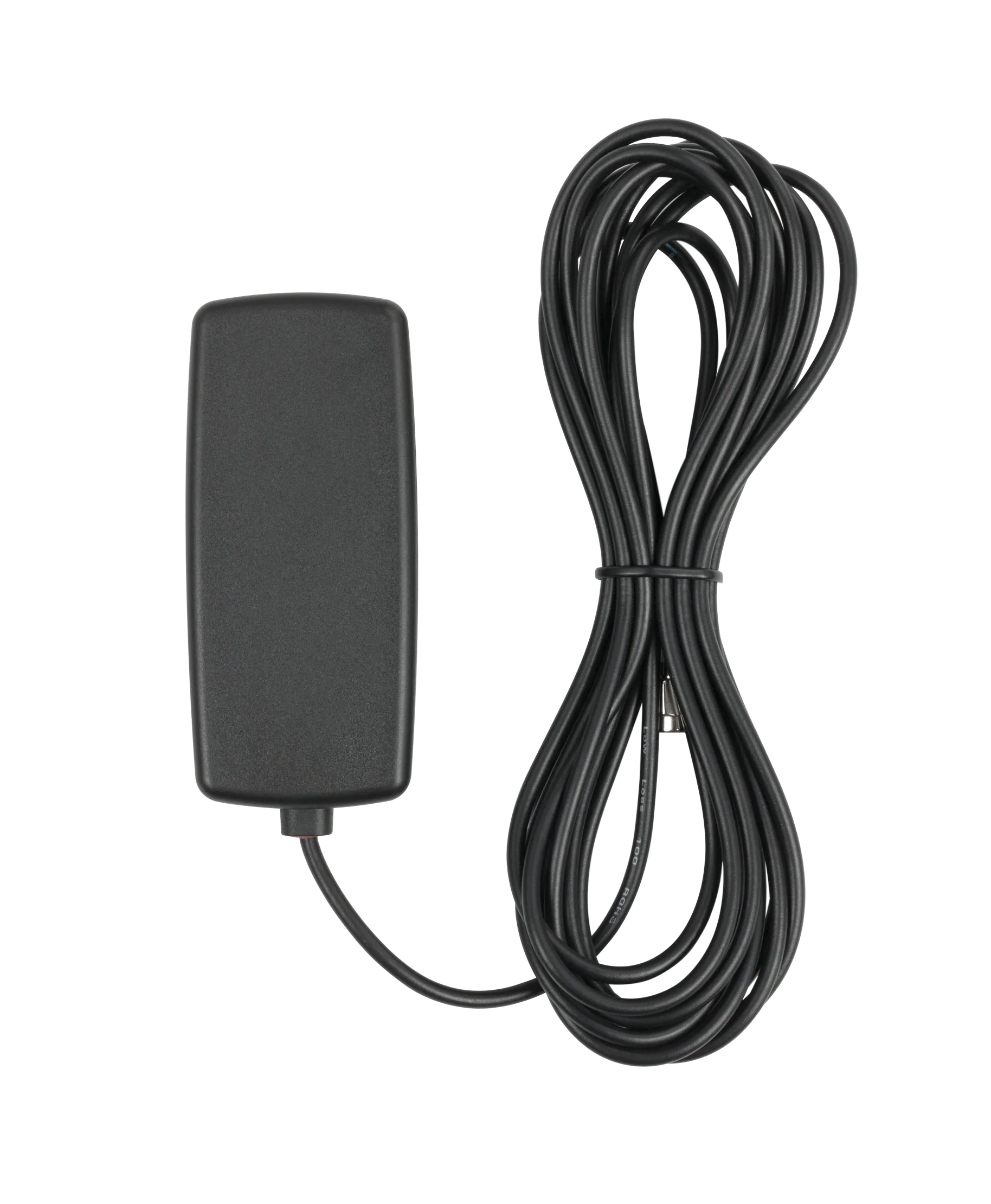

• Inside Low-Profile Antenna

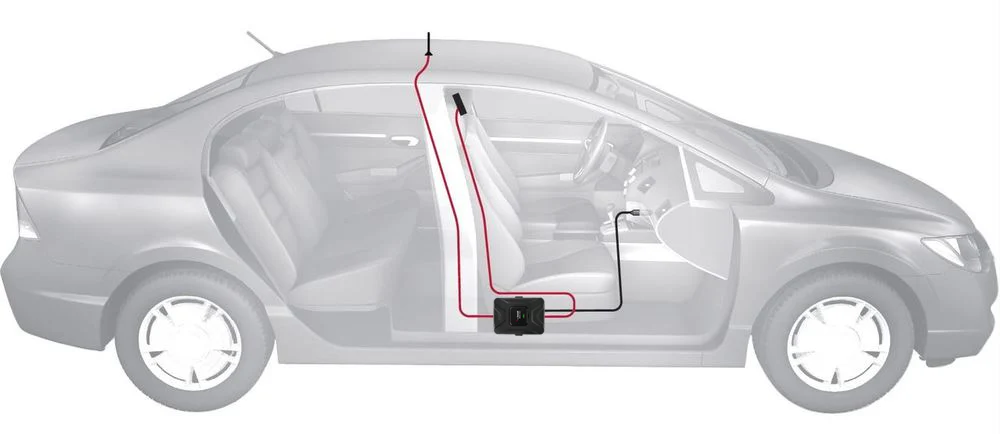

Installation Overview

Installing the weBoost 475021 Drive X kit is very easy and can usually be done in just a few minutes. Because nothing is permanent, the kit can be transferred to another vehicle as needed.

1. To start, mount the mini-mag antenna on the roof of the vehicle. The antenna must be stuck to a metal surface. If you have a sunroof, position the antenna well behind the sunroof to increase the separation between the inside and outside antennas.
2. Run the cable in through a door opening, under the door weather stripping to protect the cable.
3. Connect the cable to the amplifier's Outside Antenna port.

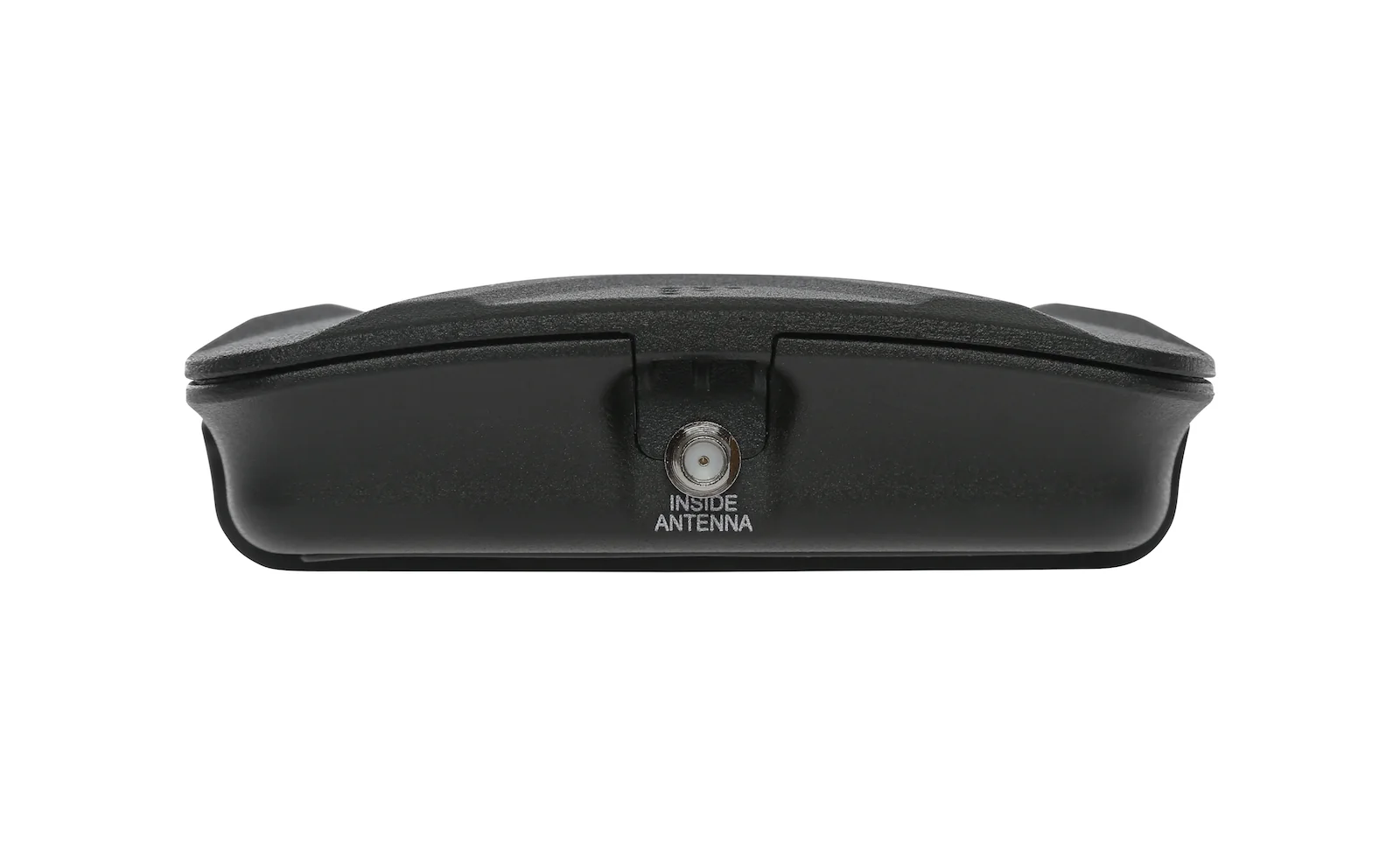

4. Connect the inside antenna cable to the amplifier's Inside Antenna port.

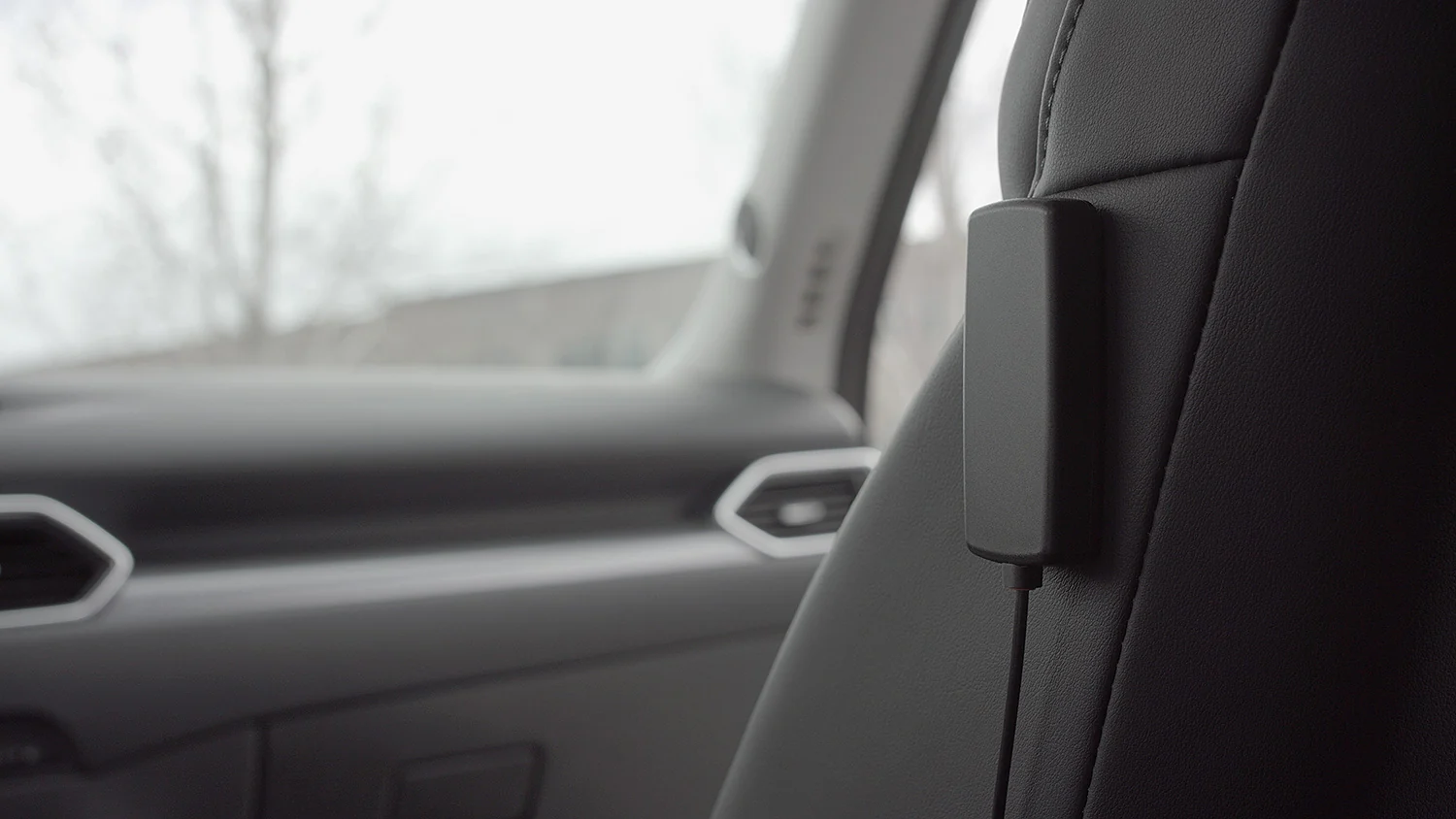

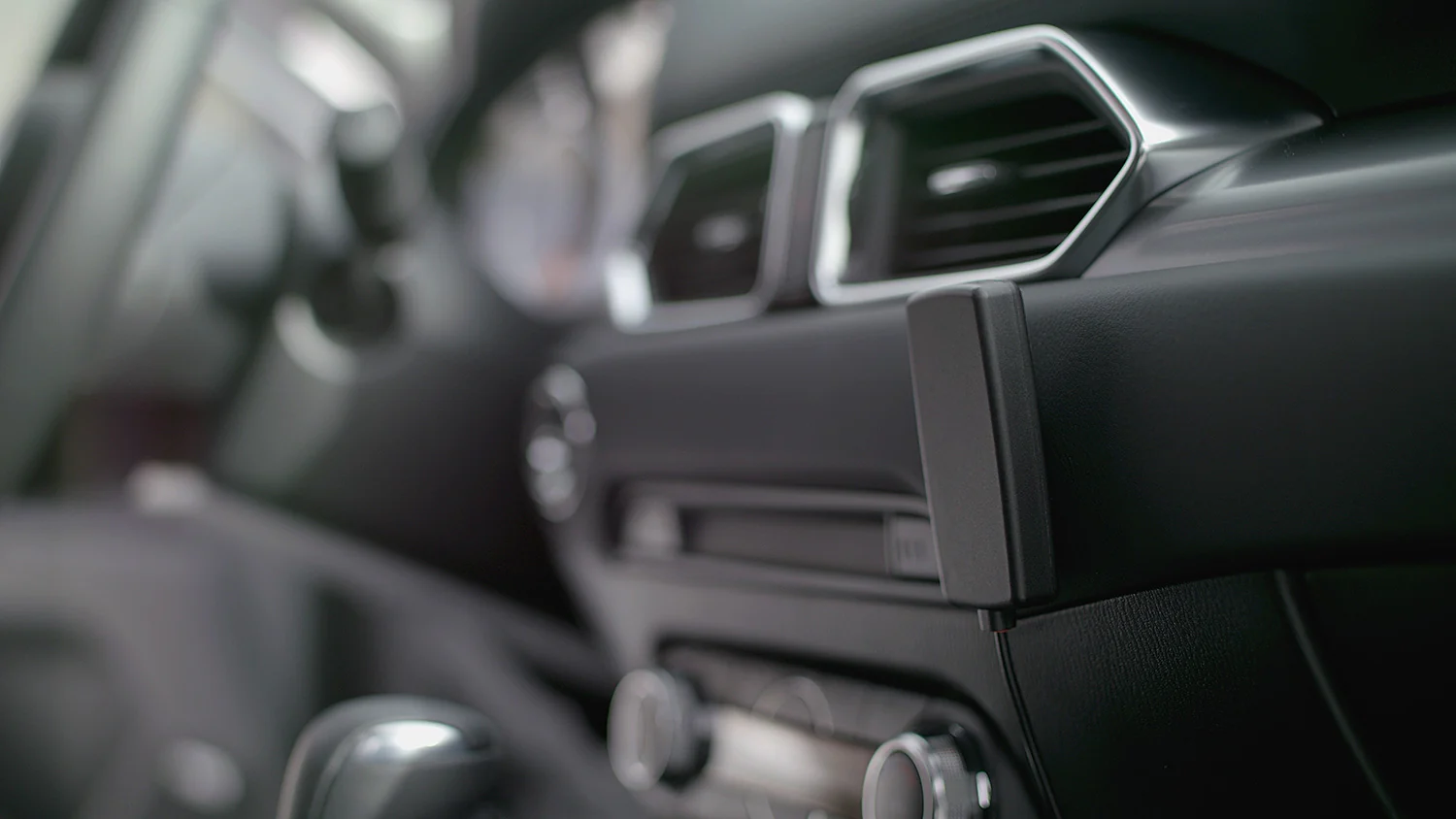

5. Locate the inside antenna near where you'll typically be using the phone, for example, in the center console or on the side of the driver's seat. Ensure that the cables and amplifier won't be damaged if the front seats are adjusted. Keep inside antenna at least 8 inches for any person and approximately 18 inches from where you typically use your phone.
