Wilson Signal M2M Dual-Band Signal Booster for 850 and 1900 MHz

The Wilson Signal M2M Direct-Connect Kit from Wilson Electronics boosts cellular signal on the 850 MHz and 1900 MHz bands directly to a single device that needs better reception. If your carrier at the install location uses 850 or 1900 MHz, this kit amplifies that signal and feeds it straight to equipment with an SMA-Female antenna port (other connector types require an adapter). Ideal for machines and modems in applications like ATMs, vending, security/monitoring, and industrial telemetry.

Please Note: This kit boosts any network that is deployed on 850 or 1900 MHz, including LTE and 5G. It will not boost networks that operate on other frequency bands besides those.

You Should Choose This Kit If

You have a device or machine that needs a direct, wired signal feed and your carrier uses 850 or 1900 MHz at the site. The Wilson M2M Direct-Connect Kit receives signal on those bands, amplifies it, and passes it directly into your device’s antenna port for improved signal quality and data performance.

Coverage Area

A direct-connect (M2M) booster does not create an indoor coverage area. It delivers the improved signal through a cable direclty to one device.

Supported Carriers

This kit supports carriers in the United States and Canada when they operate on 850 or 1900 MHz at the installation location. It supports LTE and 5G on those bands. It does not boost carrier networks that are using other frequency bands at your site.

Please Note: This signal booster kit will not work in most European, Asian, and African countries because the operating bands typically differ from 850/1900 MHz.

Kit Includes

• Wilson M2M 15 dB Direct-Connect Amplifier

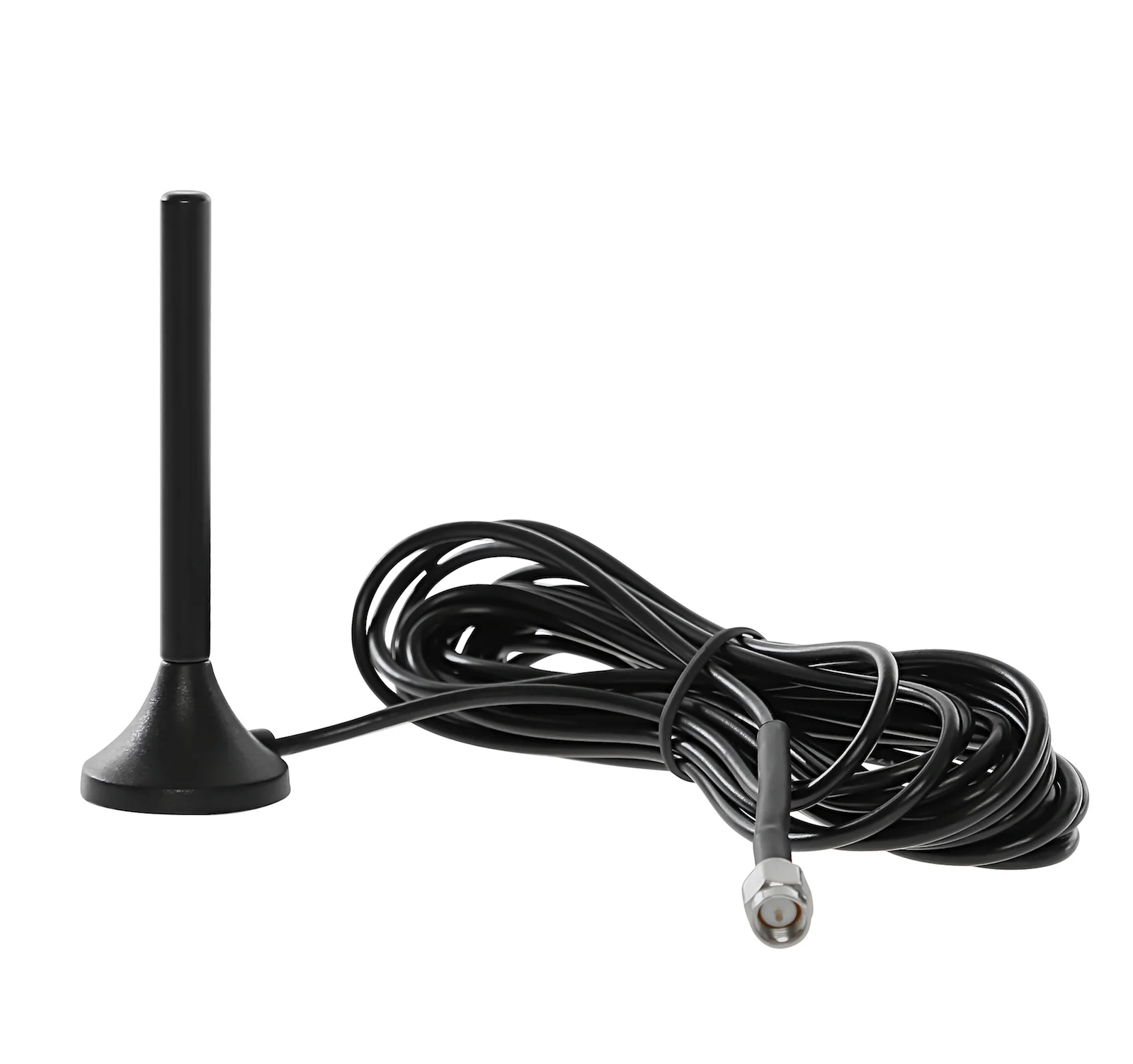

• Wilson 4" magnet-mount external antenna (301126)

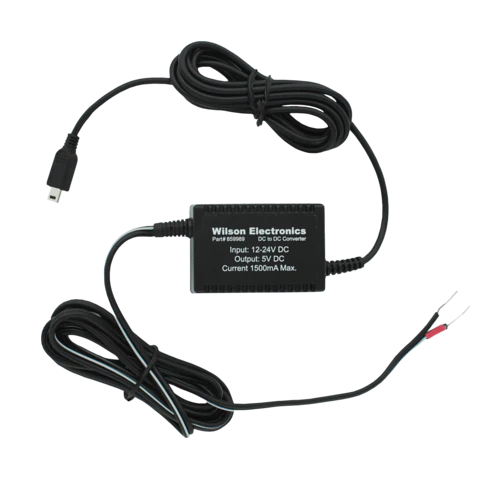

• DC hardwire power supply

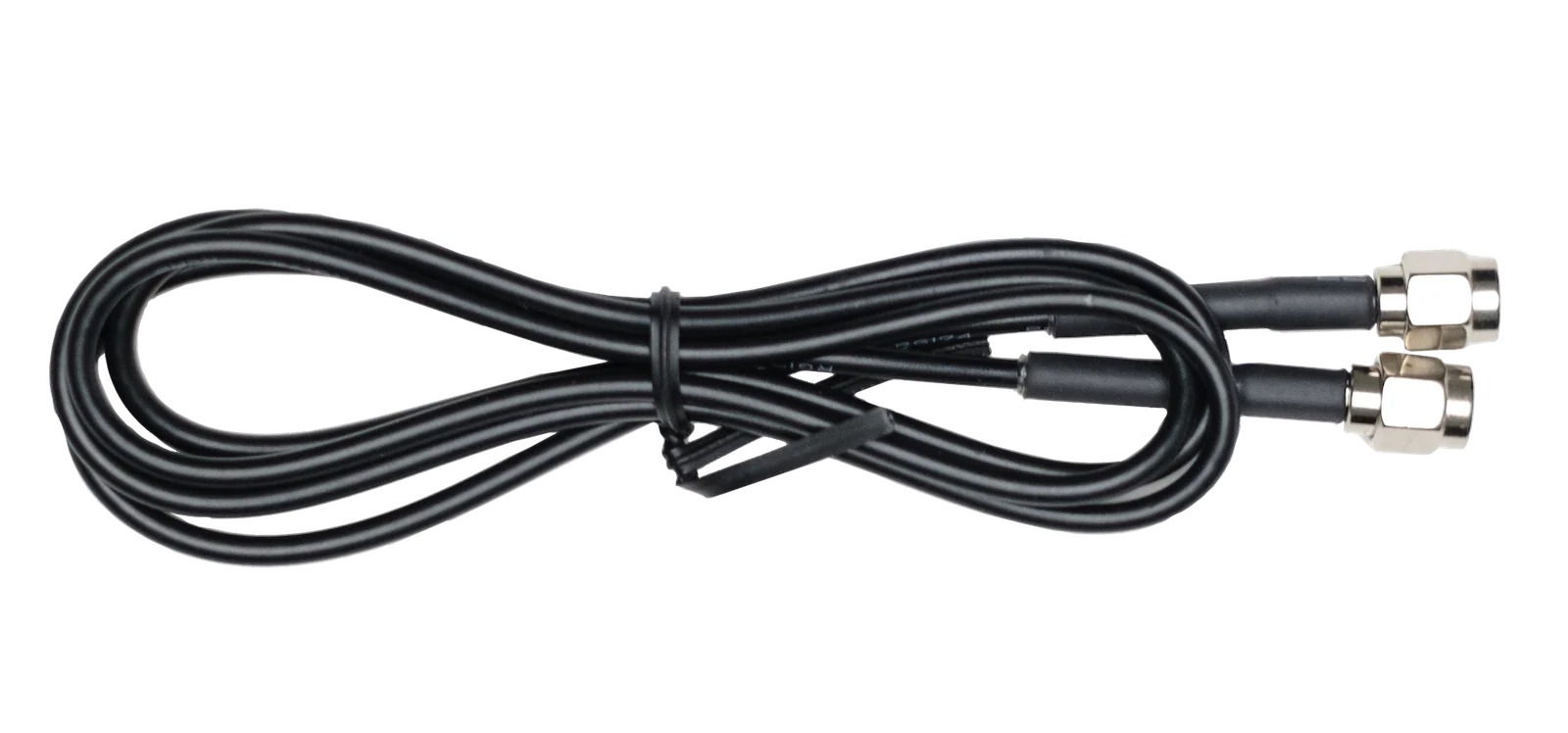

• Wilson 3' RG174 coax cable with SMA adapters

• Installation manual
